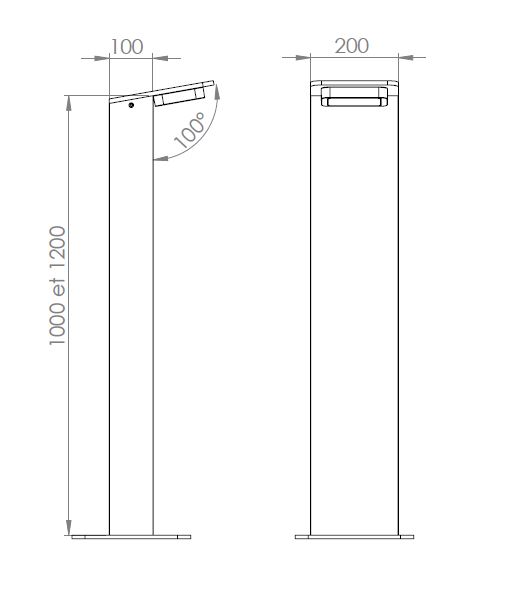

• Rectangular aluminum profile 100x200mm, Height 1000 or 1200mm
• Body of the luminaire in injected casting fixed to a surface, inclination 10°
• Access to the equipment via door
• Fixing plate with center distance 200x200mm as standard
• RAL powder coating of your choice, seaside option on request.
• Finish: bi-tone possible – at no extra cost
• IP66 OPTICAL BLOCK:
– Class II lighting
– 4 LEDs
– PMMA lenses
– Optics: “R”
– Lifespan for 3000K: L90B10 100000h
– ULR < 1%, CIE flux 3 code > 95%
– Color temperature: 3000K as standard. 2700K, 2200K possible
at no extra cost and 1800K optional.
EQUIPMENT remote in the pole
– IP66 waterproofing
– Fullprog driver
– Tight connector for wiring between luminaire and driver
– Optional: electrical connection box with terminal block and cut-off circuit
• OPTIONS:
Presence detection, Electrical outlet,
Other optics on request
• All our components are ENEC certified
- Eligible for energy-saving certificate
- ENEC-certified components
- RoHS
- DEEE PRO member
- CE 1166
- ISO 9001
- ISO 14001
- Meets the requirements of the Decree of December 27, 2018 on the prevention, reduction and limitation of light pollution.
