-Class II luminaire (number of luminaires defined according to need)
One-piece body in die-cast aluminum
– Sealed, screen-printed diffuser in IK08 flat glass
– Aluminium ribs between PCBs to reduce glare
Choice of RAL / Akzo Nobel powder-coating, seaside option on request

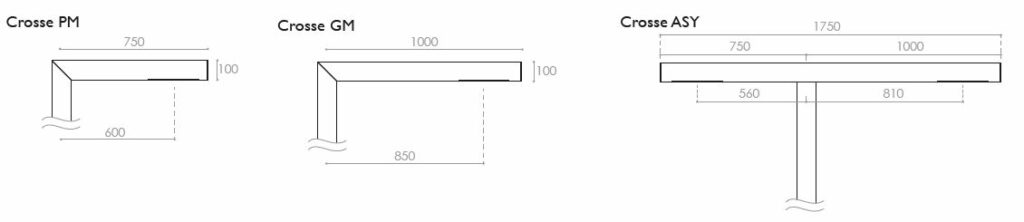

– Rectangular, one-piece, extruded-aluminum stock in the extension of the barrel. 3 projections available: 500mm, 1000mm, 1300mm
– Rectangular cross-section. Overall dimensions to be defined according to installation area.
-Choice of RAL / Akzo Nobel powder coating, seaside option on request.
– OPTICAL BLOCK IP66 :
– Service life L90B10 100000h
– Luminous efficacy up to 135 lm/W
– LED source flux from 1000 to 18000 lm
– Optical lenses in PMMA
– Aluminum PCB
– Optics: Road (R), Semi-urban (SU), Urban (U), Square (P), Cycle track (PCY), Pedestrian crossing.
– ULR < 1%, ULR < 4% (in situ), CIE flux 3 code > 95%.
– Color temperature: 3000K as standard. 2700, 2200 and 1800K optional.
– Cohabitation of 2 white tones or one tone and one color to preserve a particular fauna possible on request.
– Standard pre-wiring according to number of PCBs
– REMOTE EQUIPMENT AT MAST FOOT:
– IP66 sealing
– Programmable driver, DALI programmable driver. Optional D4i driver
– Overvoltage immunity > 6kV (IEC 61010 compliant)
– Specific driver(s) for mixed-source solution on project
– OPTIONS :
– zhaga antenna socket on request
– Varistor on request
– All our components are ENEC certified
The Chrysalis selection of AXALTA shades.
Order your free color samples by clicking on the desired shade.
To choose your shade, follow these steps:
- Click on the desired shade, then select your country.
- Return to this page
- Select the color you like and add it to your shopping cart.
- Eligible for energy-saving certificate
- ENEC-certified components
- RoHS
- WEEE PRO member
- CE 1166
- ISO 9001
- ISO 14001
- Meets the requirements of the Decree of December 27, 2018 on the prevention, reduction and limitation of light pollution.
