• Luminaire classe II
• Dôme étagé de section ronde, diamètre inférieur 485mm, diamètre chapiteau 180mm, hauteur 340mm, en aluminium repoussé.
• Fixé sur le plateau : Corps Lolita monobloc en fonderie d’aluminium injecté sous pression Ø370mm
• Vasque LOLITA scellée sérigraphiée :
– en verre plat IK08, en standard
– en polycarbonate IK10, sur demande
• Nervures aluminium entre les PCB pour réduction de l’éblouissement
• Option : – Vasques thermoformées de style classique en PMMA ( 2 modèles)
– Couronne en option, découpée laser et rivetée
– Graphisme personnalisable sur demande
– Lyre voile ou classique
– Formes de jambage en version portée
• Thermoloquage RAL / Akzo Nobel au choix, option bord de mer sur demande

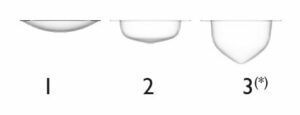

- optional basins
(*)In compliance with the 2018 decree applicable only
in heritage zones, parks and gardens,
and economic development zones
• OPTICAL BLOCK:
– Lifetime L90B10 100000h
– Luminous efficacy up to 135 lm/W
– LED source flux from 1000 to 18000lm
– PMMA optical lenses
– Aluminum PCB (4 maximum)
– Optics: Road (R), Semi urban (SU), Urban (U), Square (P), Bicycle path (PCY), Pedestrian crossing, Architectural.
– Color temperatures: 3000K, 2700K, 2200K, 1800K (4000K, on request) – Optional coexistence of 2 color temperatures*.
– Pre-wired HO7 RN-F flexible 6m
– ULOR < 1%, ULR < 4% (in situ), CIE flux 3 code > 95%.
• APPARATUS integrated in the dome :
– IP66 sealing
– Optional antenna socket (Zhaga, Nema)
– Driver Light prog, Driver Full prog (with DALI output on request), Driver SR or D4I and plug, optional
* Additional driver for mixed temperature option
• ELECTRICAL PROTECTION :
– 10kV surge protector on request
– Varistor on request
– All our components are ENEC certified
• STANDARDS :
Carried with 2 curved extruded aluminum arms on a cast aluminum overlapping node for 60mm top mast.
In suspended version in 34 PdG, without arms.
Other bows in option.
- Eligible for energy-saving certificate
- ENEC-certified components
- RoHS
- DEEE PRO member
- CE 1166
- ISO 9001
- ISO 14001
- Meets the requirements of the Decree of December 27, 2018 on the prevention, reduction and limitation of light pollution.
