– Class II luminaire
– Spun aluminium dome
– Ø460mm aluminum top
– Attached to top: one-piece die-cast aluminum Lolita body Ø370mm
– Sealed, screen-printed LOLITA basin in IK08 flat glass.
– Choice of RAL / Akzo Nobel thermolacquering, seaside option on request.
- Optional basins

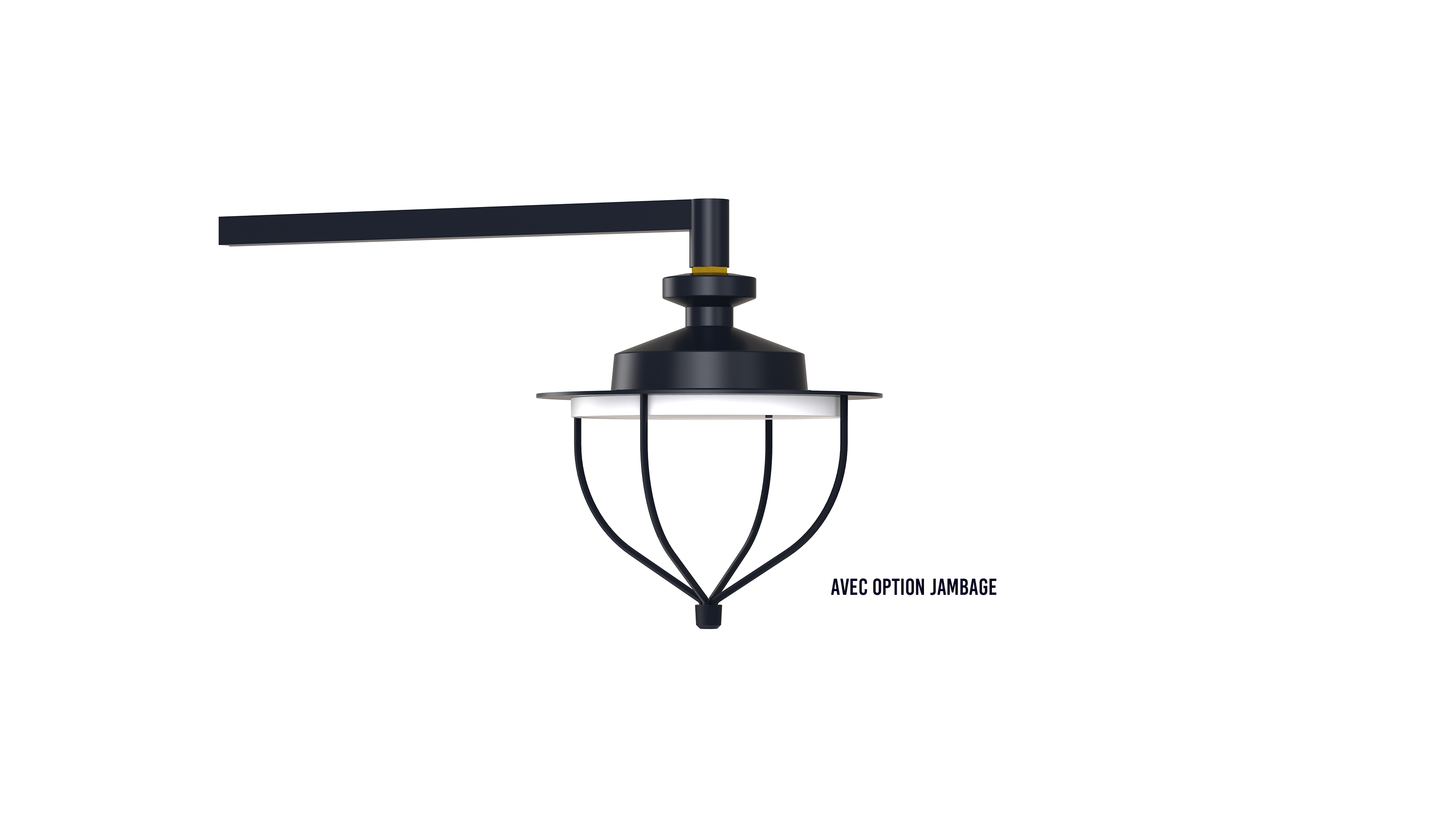

- Jambage
(*)In compliance with the 2018 decree applicable only
in heritage zones, parks and gardens,
and economic development zones
– OPTICAL BLOCK :
– Service life L90B10 100000h
– Luminous efficacy up to 135 lm/W
– LED source flux from 1000 to 18000 lm
– Optical lenses in PMMA
– Aluminum PCB (4 PCBs maximum)
– Optics: Road (R), Semi-urban (SU), Urban (U), Square (P), Cycle track (PCY), Pedestrian crossing, Symmetrical.
– Color temperature: 3000K as standard. 2700, 2200 and 1800K optional.
– Cohabitation of 2 white tones or one tone and one color to preserve a particular fauna possible on request.
– Standard pre-sizing according to number of PCBs
– ULR < 1% , ULR < 4% (in situ) ,CIE flux 3 code > 95%.
– APPARATUS integrated into luminaire body:
– IP66 tightness level
– Programmable driver, DALI programmable driver. Optional D4i driver
– Overvoltage immunity > 6kV (IEC 61010 compliant)
– Specific driver(s) for mixed-source solution on project
– OPTIONS :
– zhaga antenna socket on request
– Varistor on request
– Lightning arresters
– All our components are ENEC certified
– STANDARDS :
– Suspended PDG34 male
– OPTION :
– 2 or 3-arm lyre-supported
- Eligible for energy-saving certificate
- ENEC-certified components
- RoHS
- WEEE PRO member
- CE 1166
- ISO 9001
- ISO 14001
- Meets the requirements of the Decree of December 27, 2018 on the prevention, reduction and limitation of light pollution.
